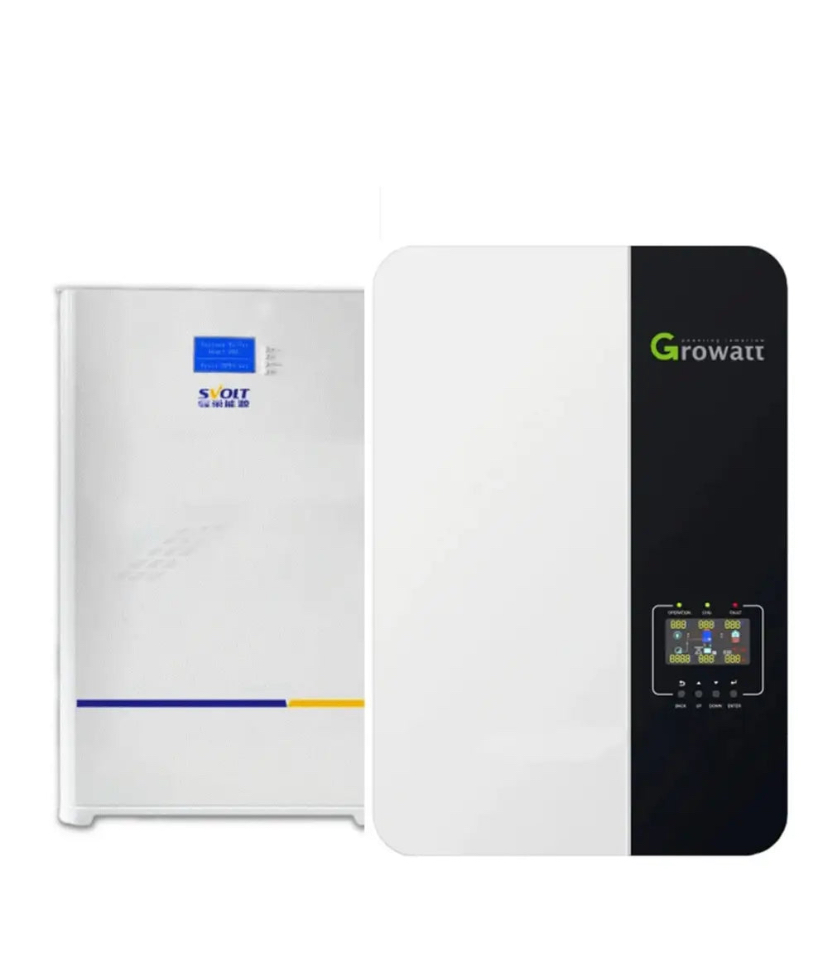

Growatt 5KVA Inverter and Battery Combo Svolt 5.09KWh Lithium Battery
This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries. Parallel operation up to 6 unit (only with battery connected)
Growatt 5KVA Inverter and Battery Combo Svolt 5.09KWh Lithium Battery
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms – 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPTs with a wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via the app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
What’s in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
Battery Specifications:
SVOLT Lithium Ion Battery 48V 106AH 5.09KWH Wall Mounted
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
Energy:5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage:48V
Nominal Capacity :106Ah
Energy Density:5427 KWh
Dimensions(LxWxH) :688 x 447 x 211mm
Weight (Approx.):49.5KGS
Terminal Type: M6
Terminal Torque:8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<30mO
Efficiency – round trip:99%
Self Discharge per Month:<3%
Max parallel connectors:16Pcs
Series connections:Not Allowed
Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20° C to 65°
Storage Temperature :0C to 50° C
Bluetooth(App) :Optional
LCD Screen: Optional
Heating Function: Optional
Voltage Window: Optional
Recommend Charge Voltage:43.2V-58.4V
Max Charge Voltage:57.6±0.20V
Recommend Charge current:58.4±0.20V
Max Discharging Voltage:43.2±0.20V
Max Continuous Discharge Current :100A
Peak Discharge Current:150A
Size:
688 x 447 x 211 mm
49.5 Kg
What’s In the Box:
- 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
10 Years Service Warranty
Inverter & Battery Combo Includes:
- 1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (2 Years Warranty)
- 1x SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery (2 Years Warranty)
- Battery cables and brackets included
